SOLUTION

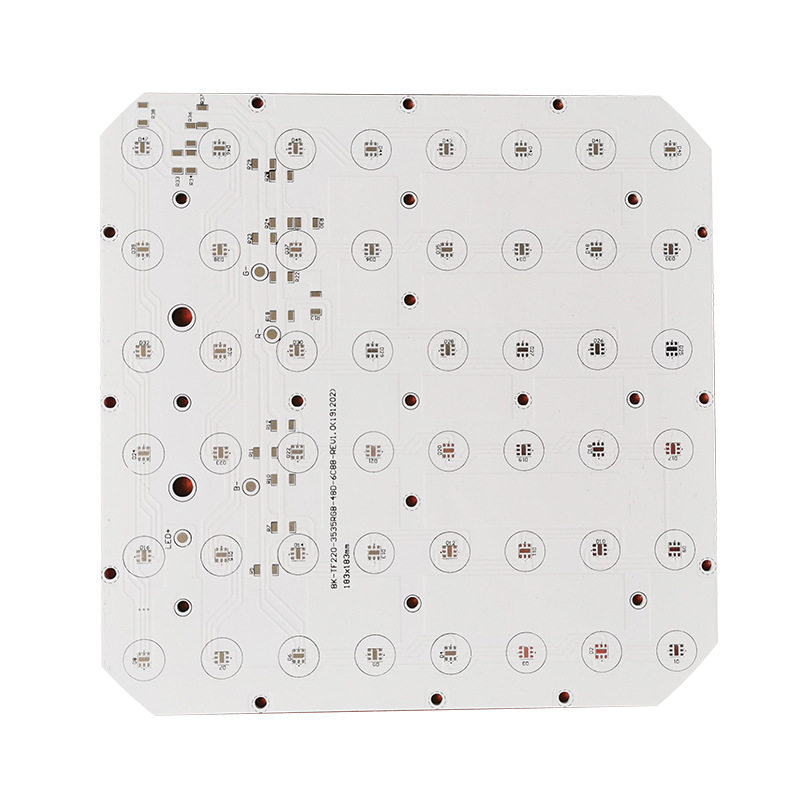

Single Sided Aluminum

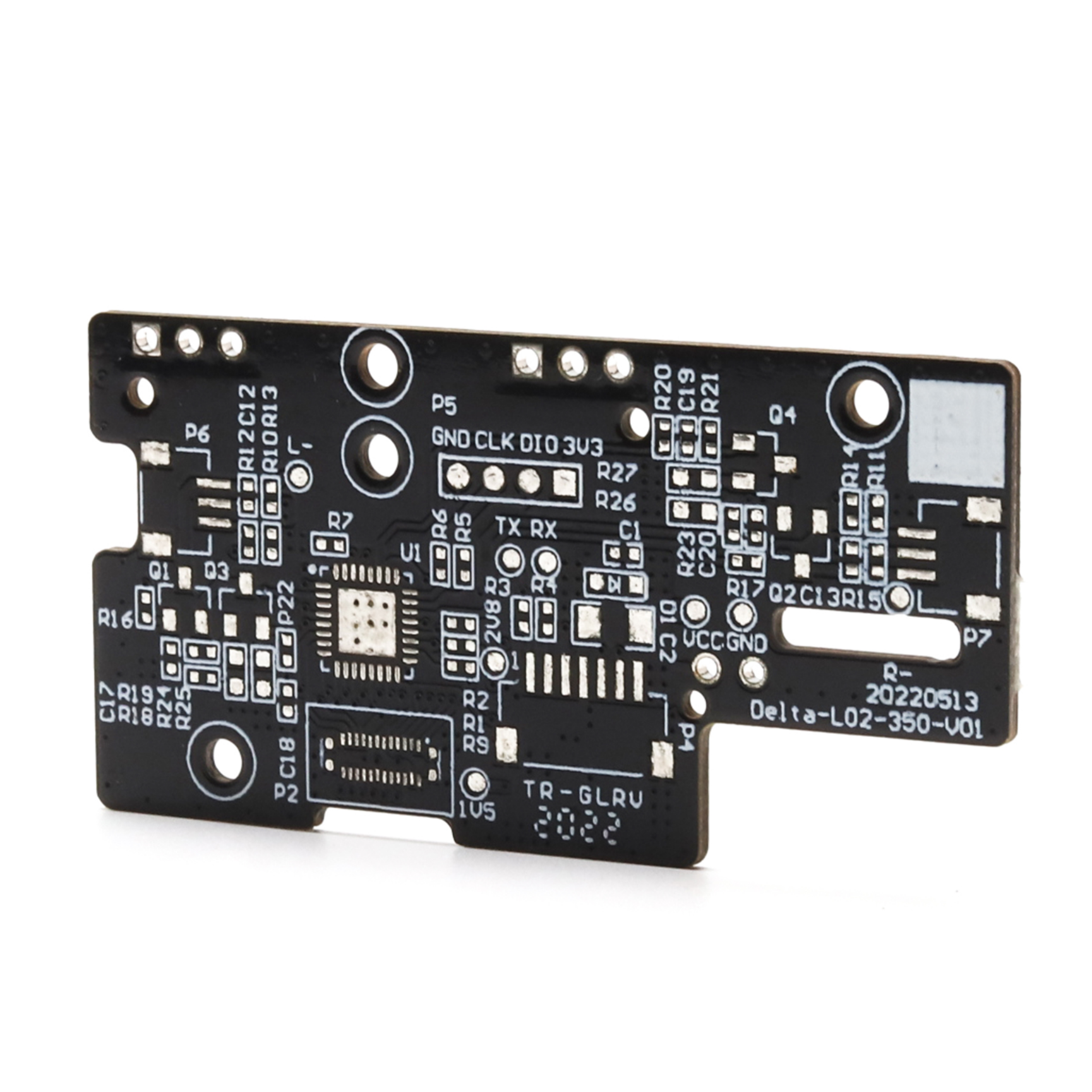

FR4 Multilayer PCB

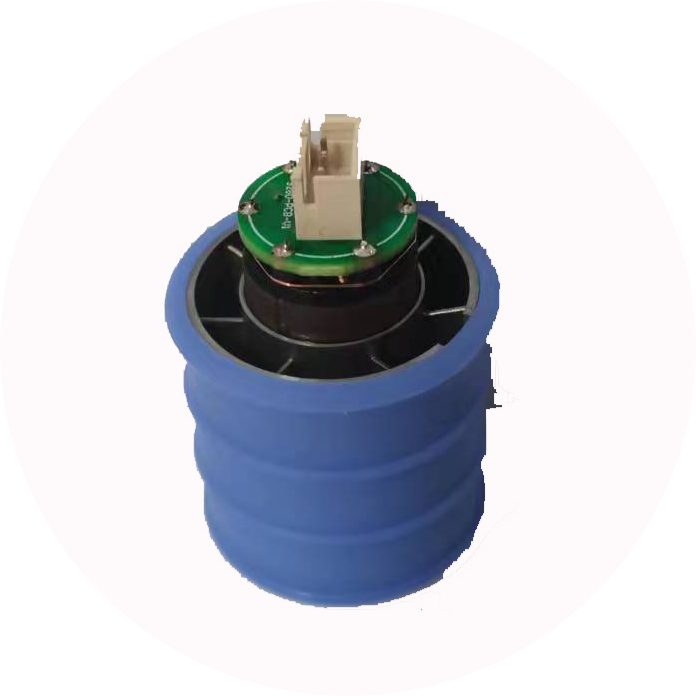

Motor&RJ45 Mini PCB

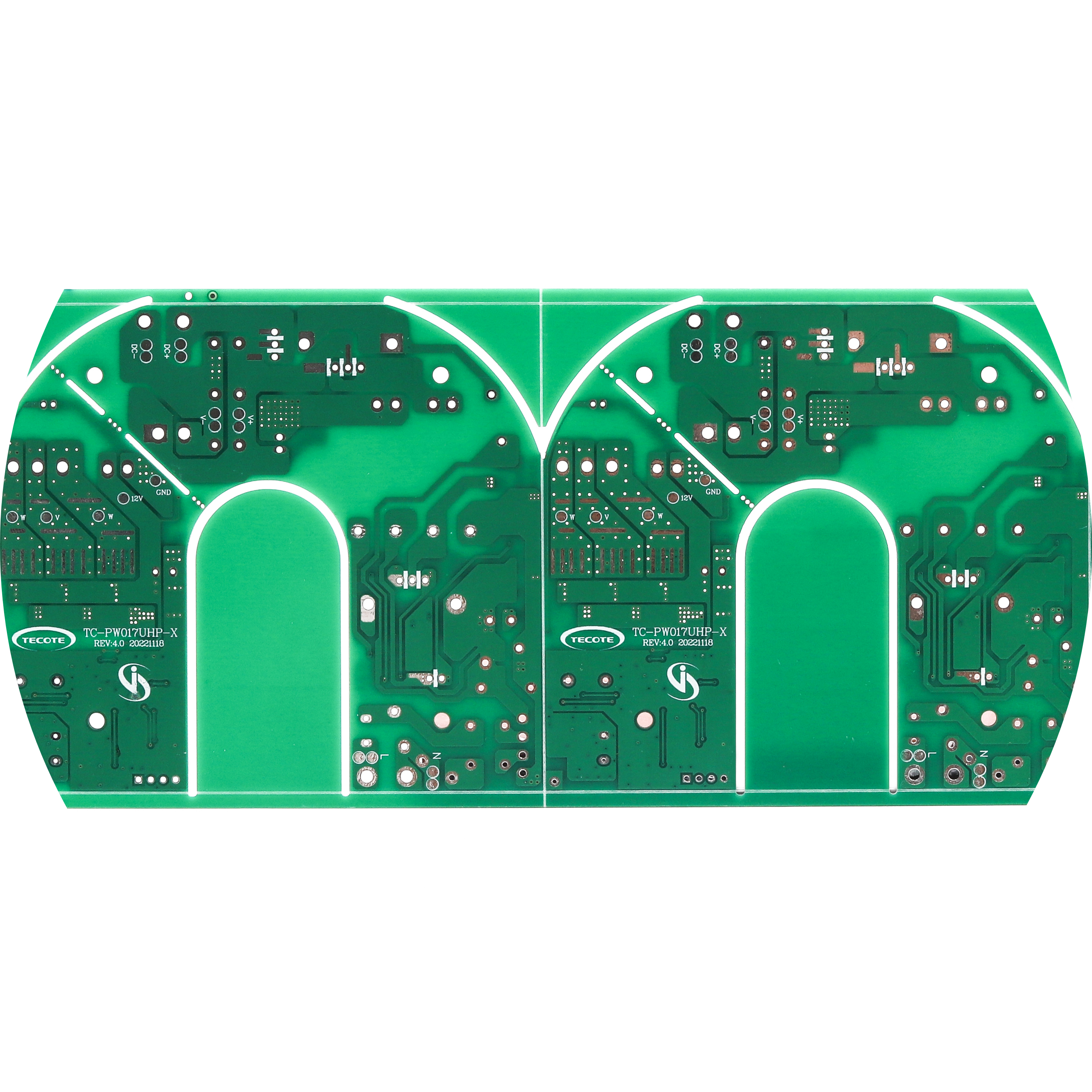

Equipment Power PCB
PRODUCTS

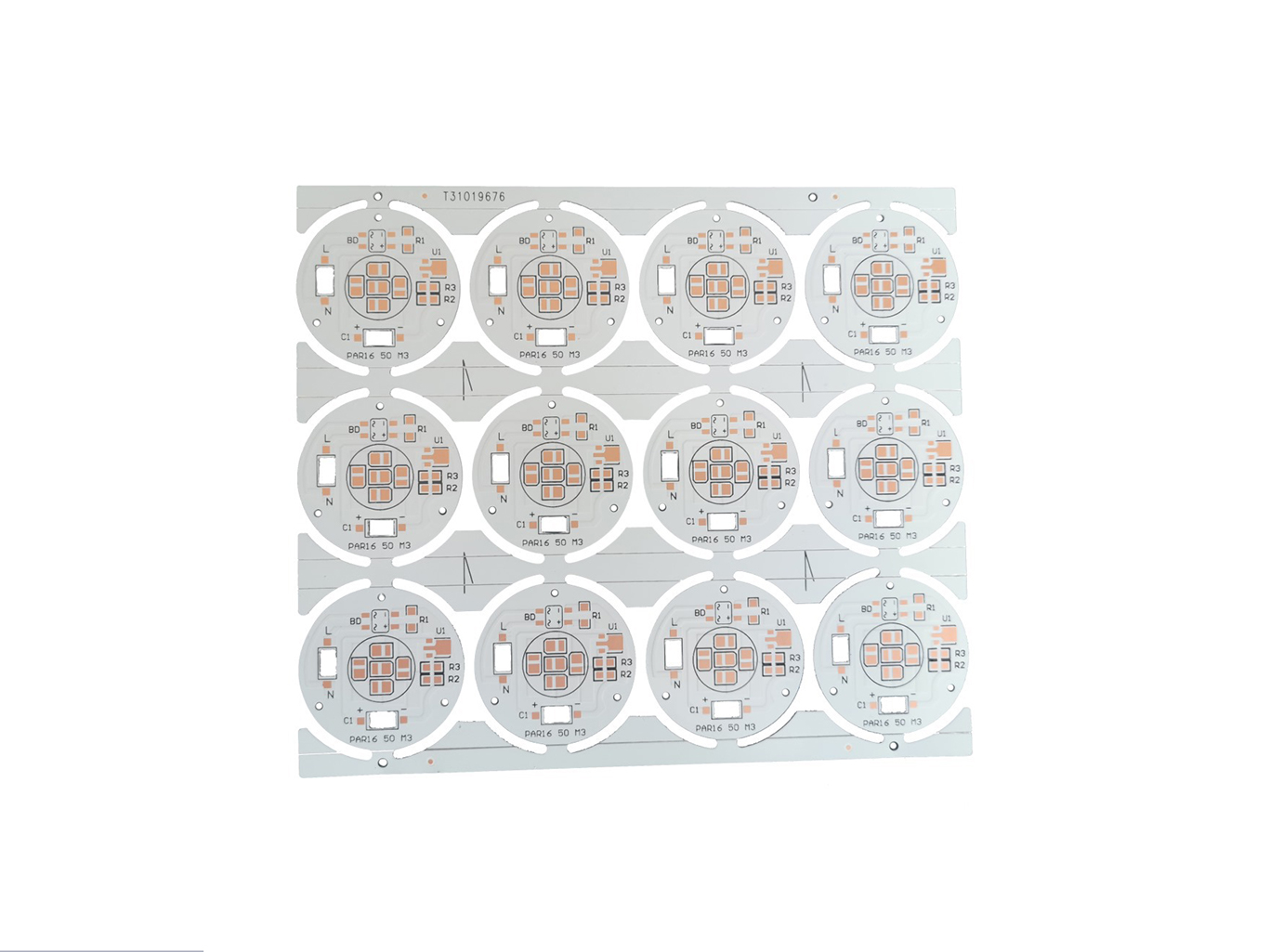

► Aluminum PCB

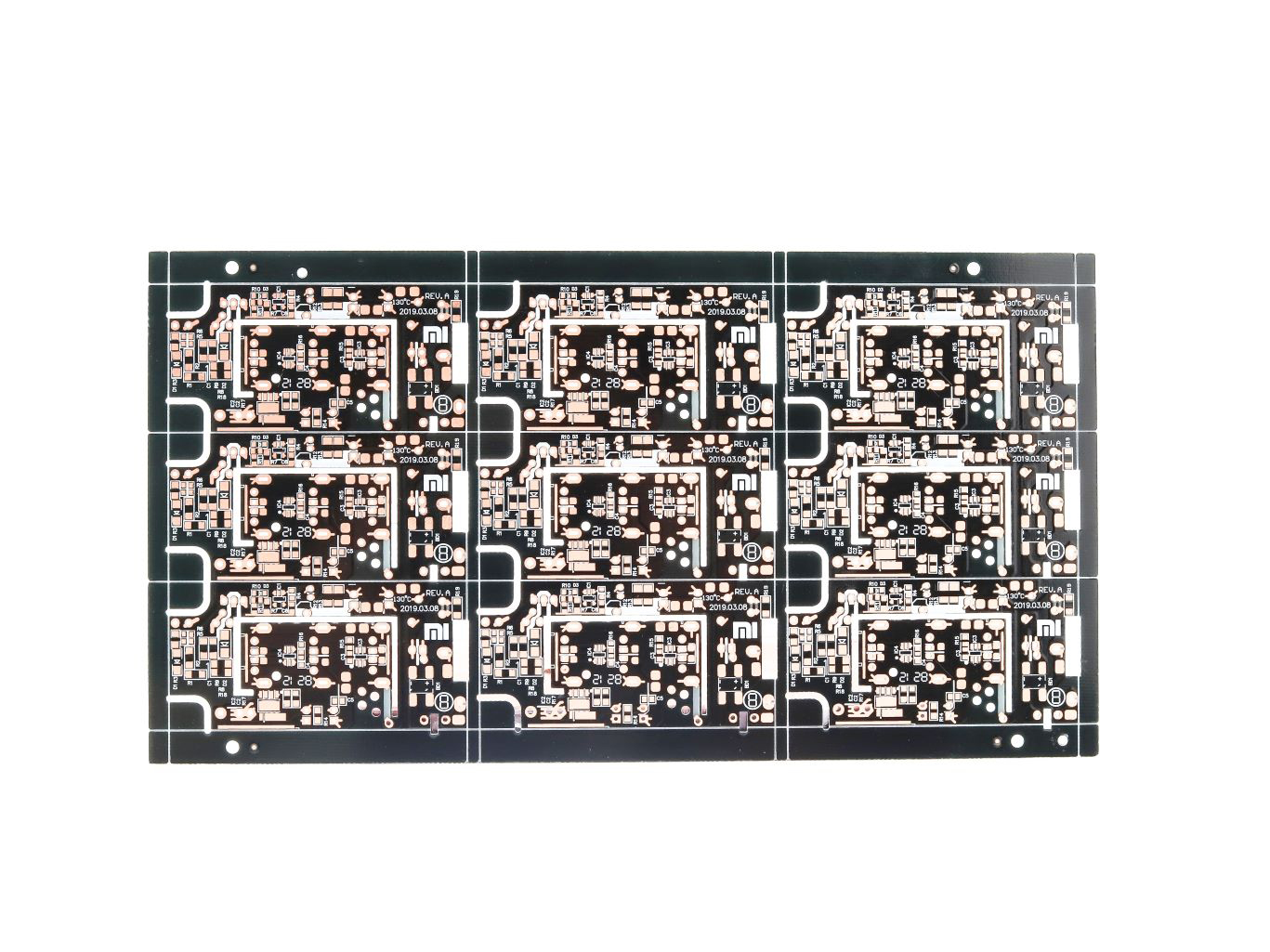

► Rigid PCB

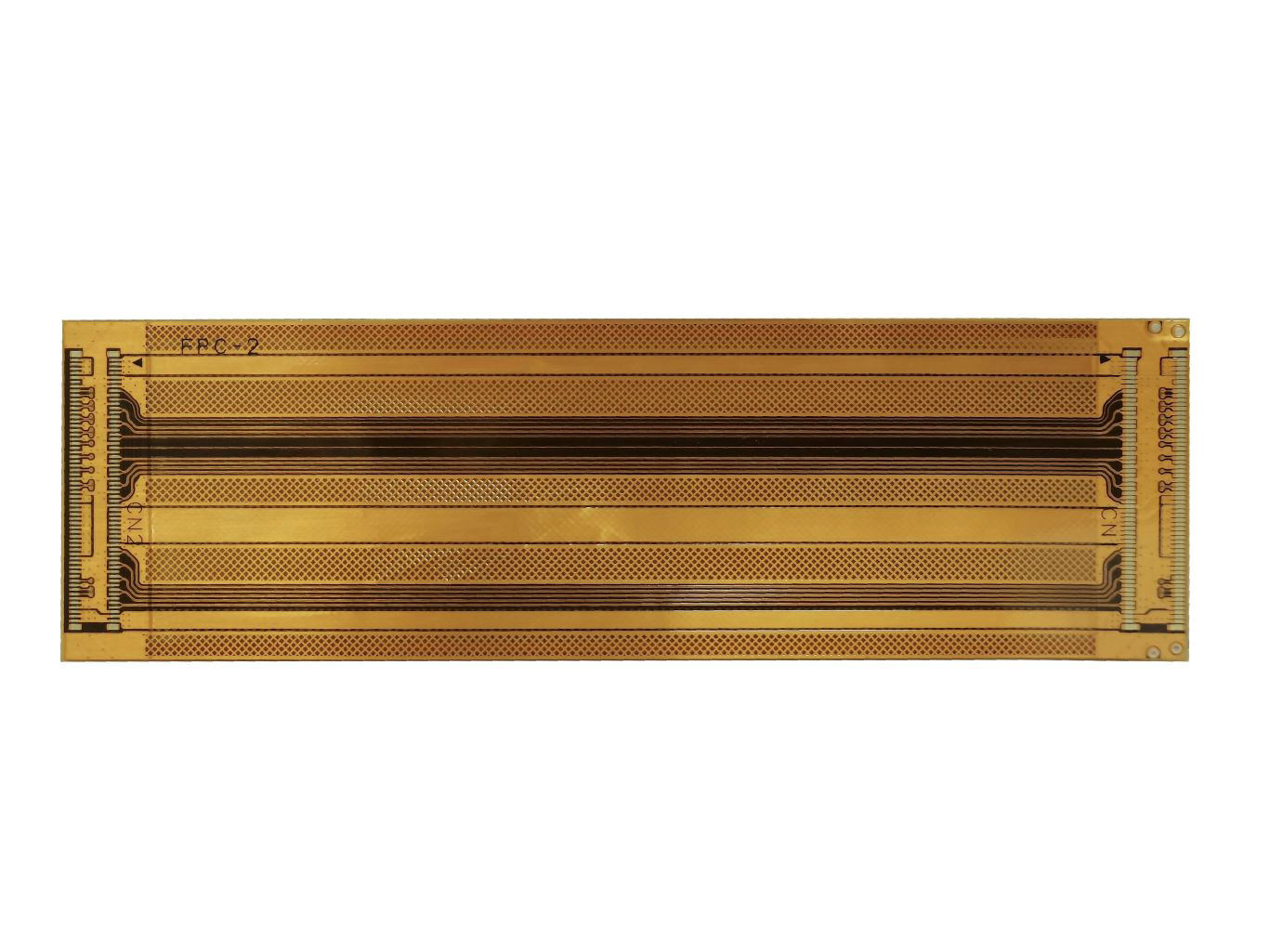

► Flex PCB

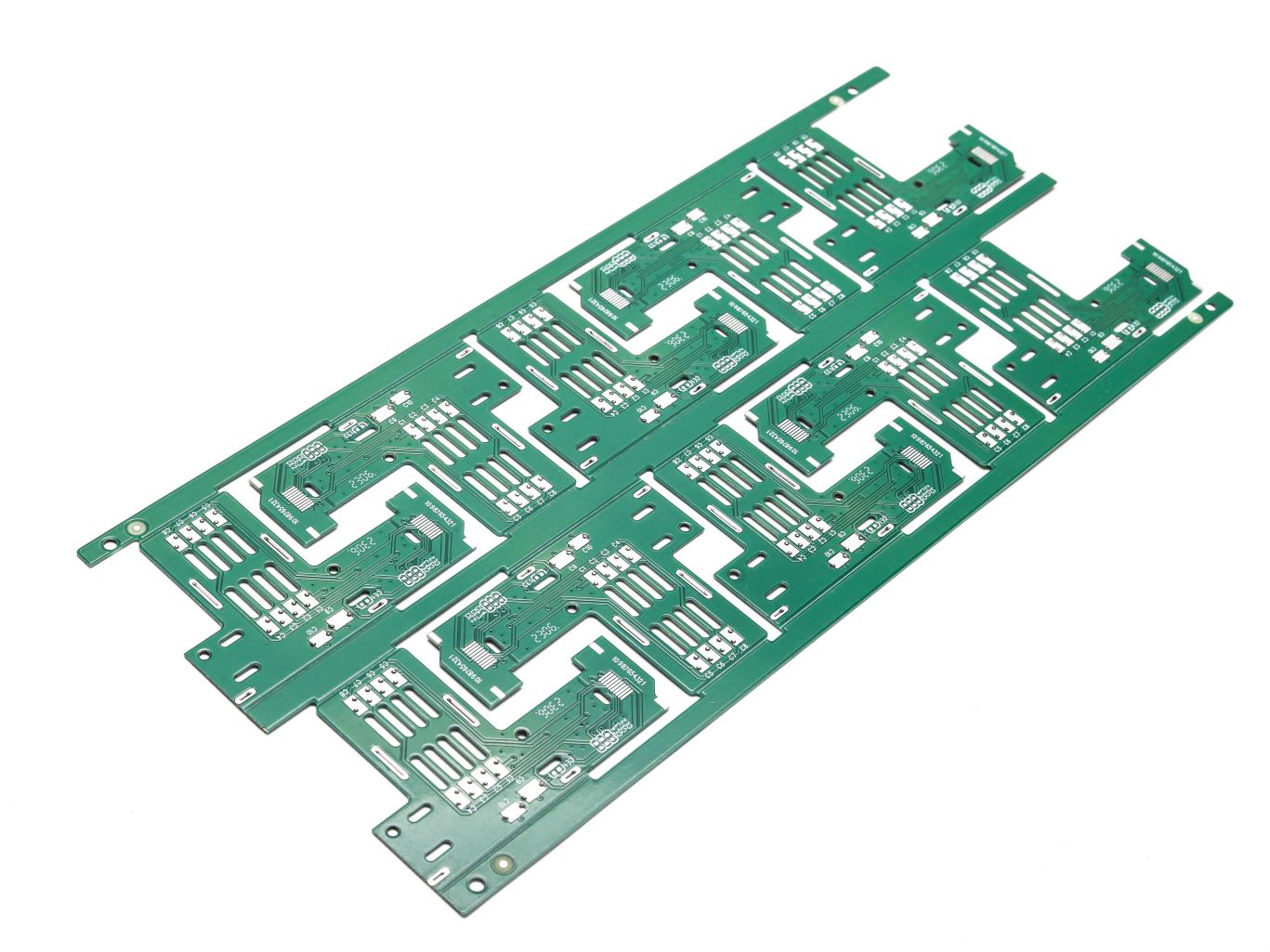

► FR4 PCB

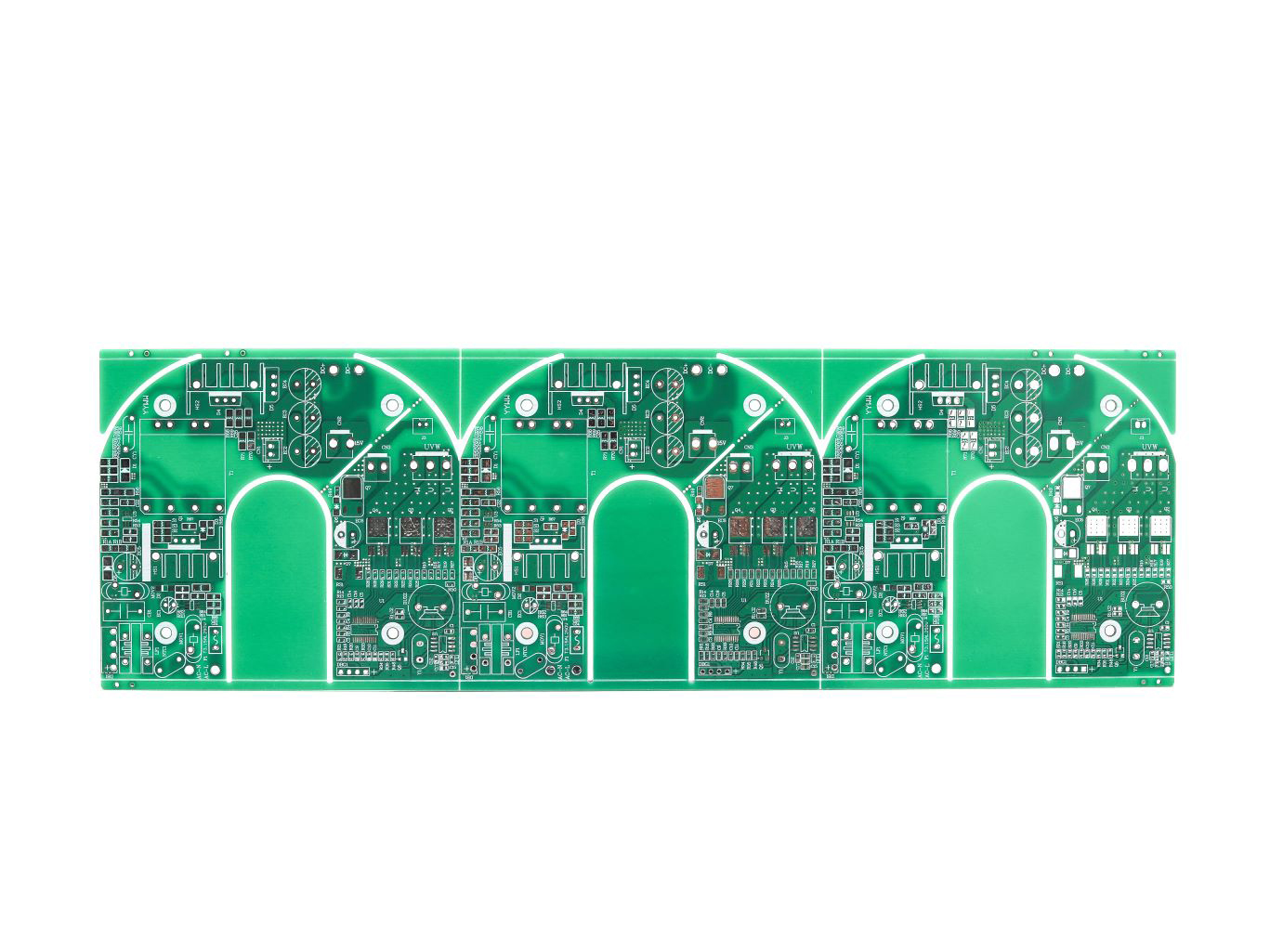

► HDI PCB

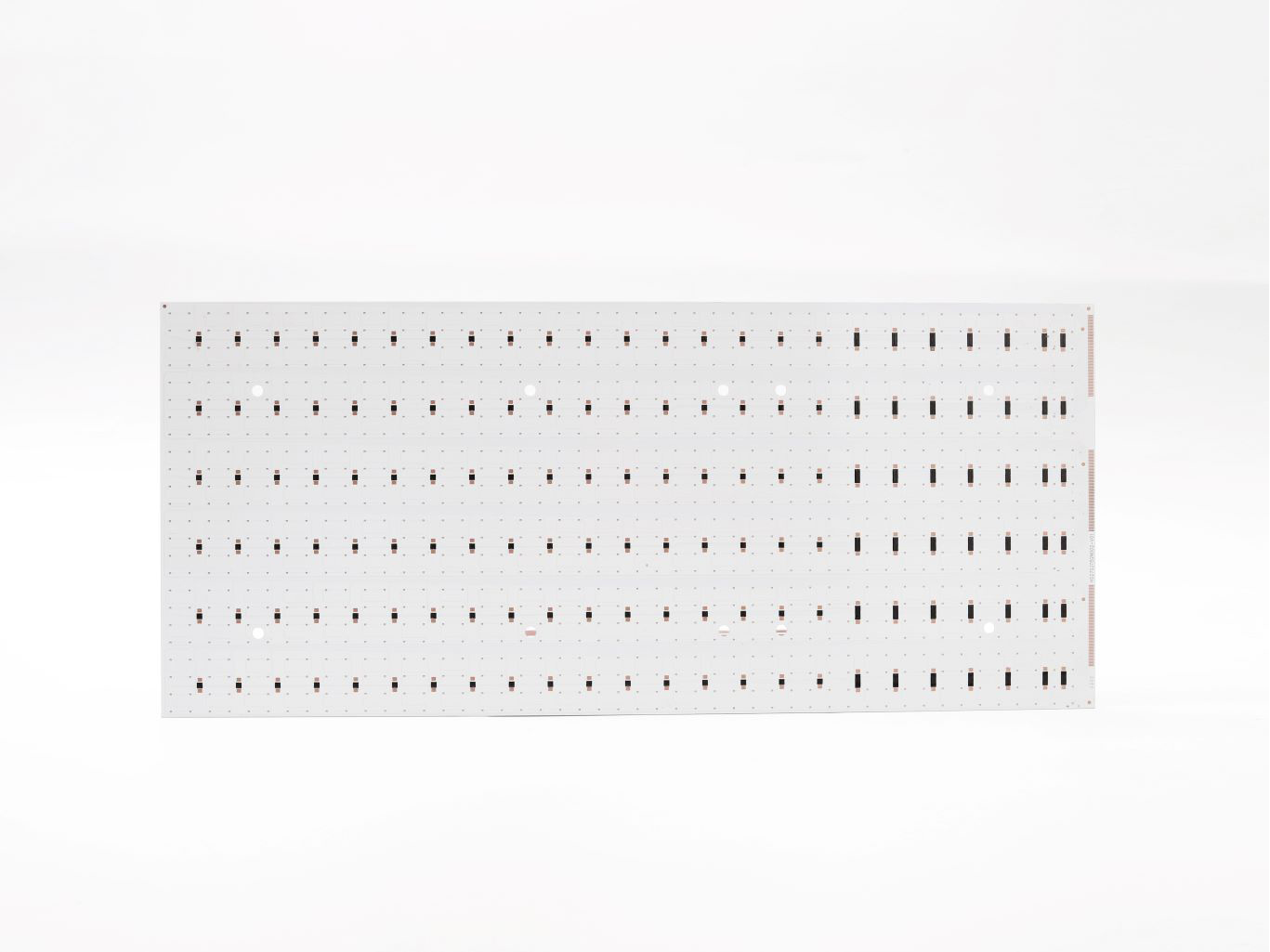

► LED PCB

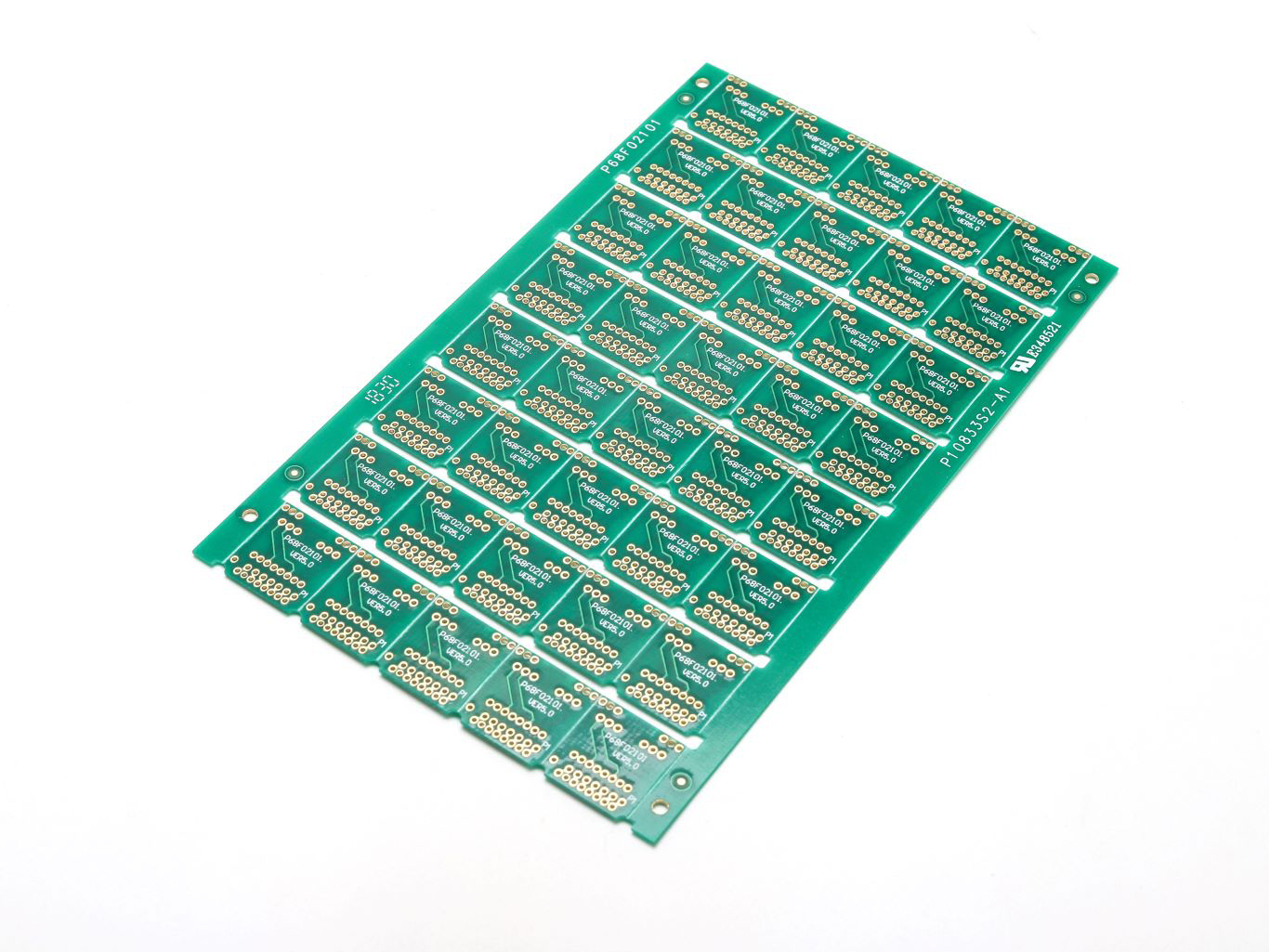

► RJ45 PCB

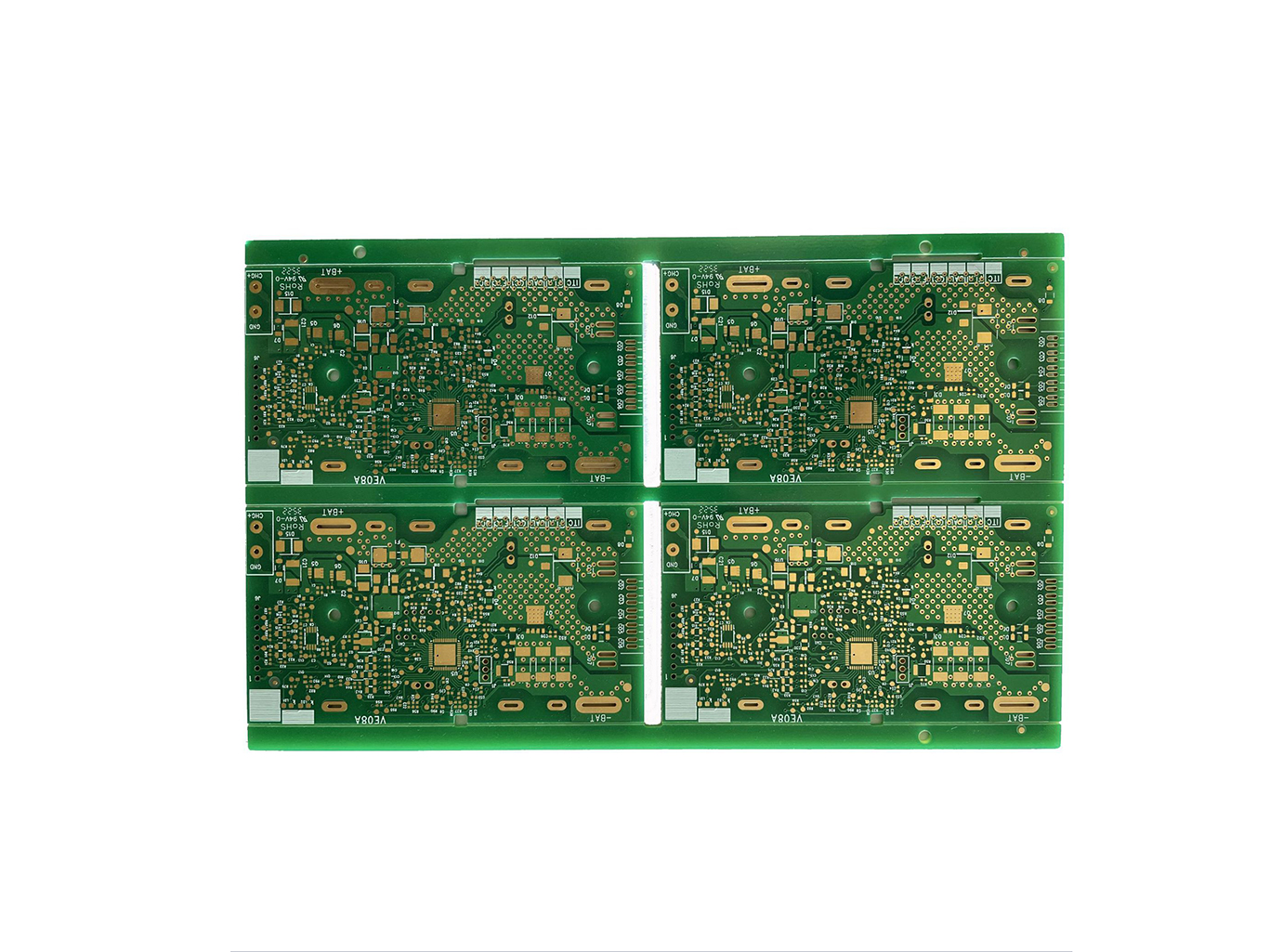

► Automotive PCB
PRODUCT CASE

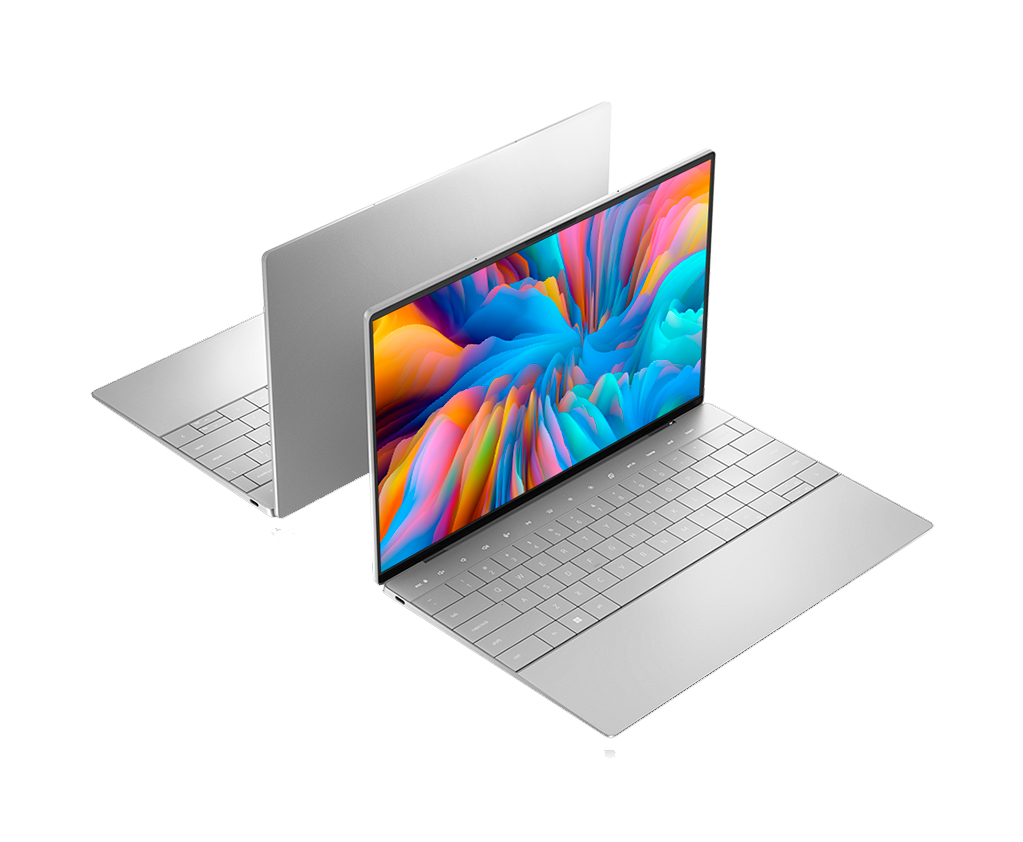

Dell Network Interface Card PCB
Specializing in producing network card PCBs for Dell, applied in laptops.
Wal-Mart Led Light Strip PCB
Specializing in producing light strips for Wal-Mart, applied in supermarket lighting.

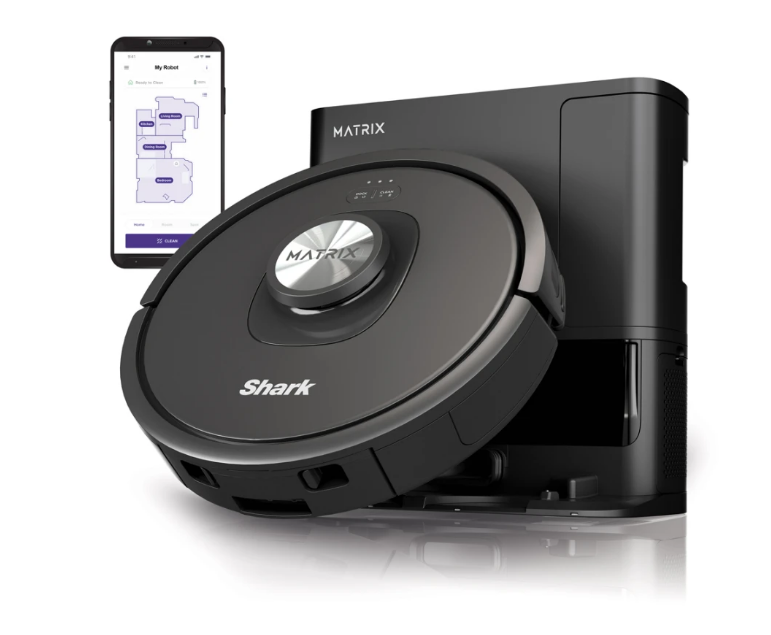

Shark Cleaning Machine PCB
Specializing in producing lidar PCB for Shark, applied in sweeping robots.

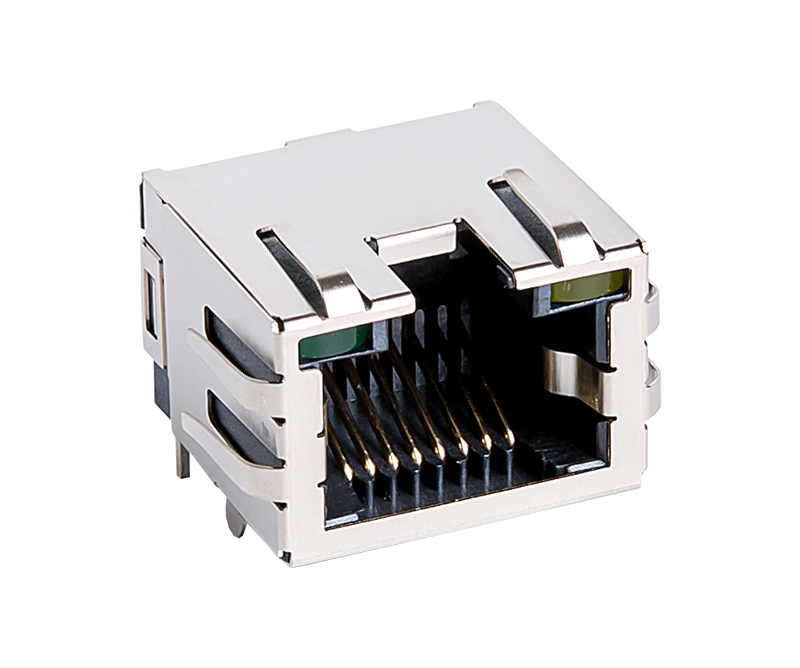

RJ45Connector PCB
Specializing in producing RJ45 connectors PCB,applied to the termination of data cables.
•”Quality first, pursuing excellence, satisfying customers, continuous improvement” is our company business philosophy. Looking forward to establishing long partnership business relationships with you.
CAPACITY
| Layer Count | 1-20 Layers |
| Material | FR4、FR1、CEM-1、CEM-3、XPC、22F、High TG、Halogen Free |
| Max. Production Panel Size | 520 × 620mm |
| Min. Finished Board Thickness | 0.2mm |
| Max. Finished Board Thickness | 3.5mm |
| Min. Line Width/Space | 0.075mm/3mil |
| Min. Drilled Hole Size | 0.20mm |
| Max. Drilled Hole Size | 6.5mm |
| Copper Thickness | 1/3 OZ, H/H OZ, 1/1 OZ, 2/2OZ, 3/3OZ, 4/4OZ |
| Outline Dimension Special Control Tolerance | ±0.05mm |
| Min. Impedance Tolerance | ±10% |
| Via in Pad | Yes |
| Surface Finish | OSP, HAL/LFHAL,Flash Gold,ENIG,Immersion Tin,Immersion Silver,Flux,Gold Finger（Gold Plating） |
Why Y-West PCB?
Customer Requirement Gathering
PCB size,layers,materials, surface tratement,quantity,etc.
Quotation and
Negotiation
Price quote,payment terms,lead time,etc.
Confirmation of Cooperation
Both the buyer and the seller confirm the cooperative relationship.
BOM list,Gerber files,ULNumber and production cycle,Lable format,etc
Telegraphic transfer in advance according to the previously negotiated payment terms
EQ and Manufacturing
Files
Customer replies EQ and confirms manufacturing files.
Produce PCB according to manufacturing files.
Quality Inspection and Packaging/Shipment
Vacuum packing and labeling on the outer box of the PCB.
APPLICATION
Our company has established partnerships with over 1500 well-known high-tech research, manufacturing, and service enterprises worldwide.Our products are applied in various fields such as consumer electronics, automotive electronics, medical equipment, LED illumination, smart home, industrial control, etc., and our resources span over 30 countries and regions globally.
Consumer Electronics

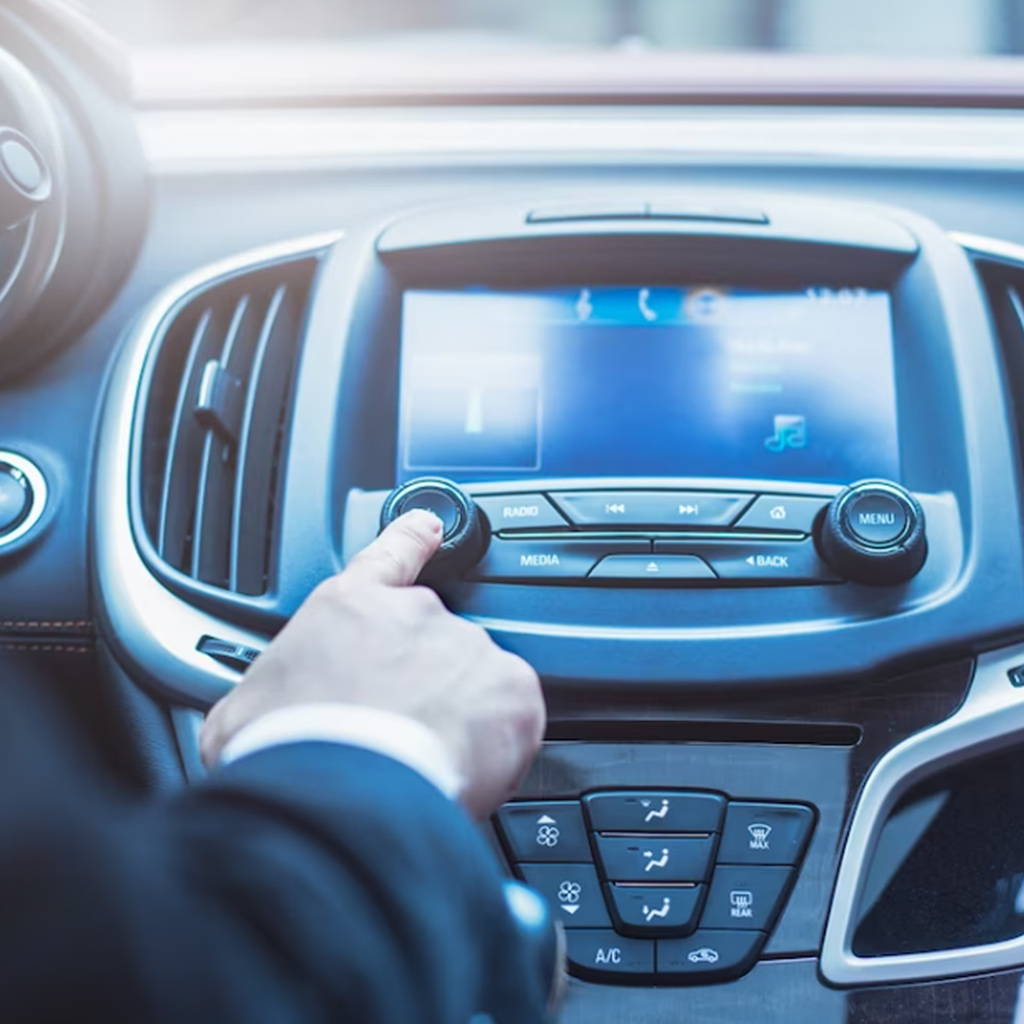

Automotive Electronics

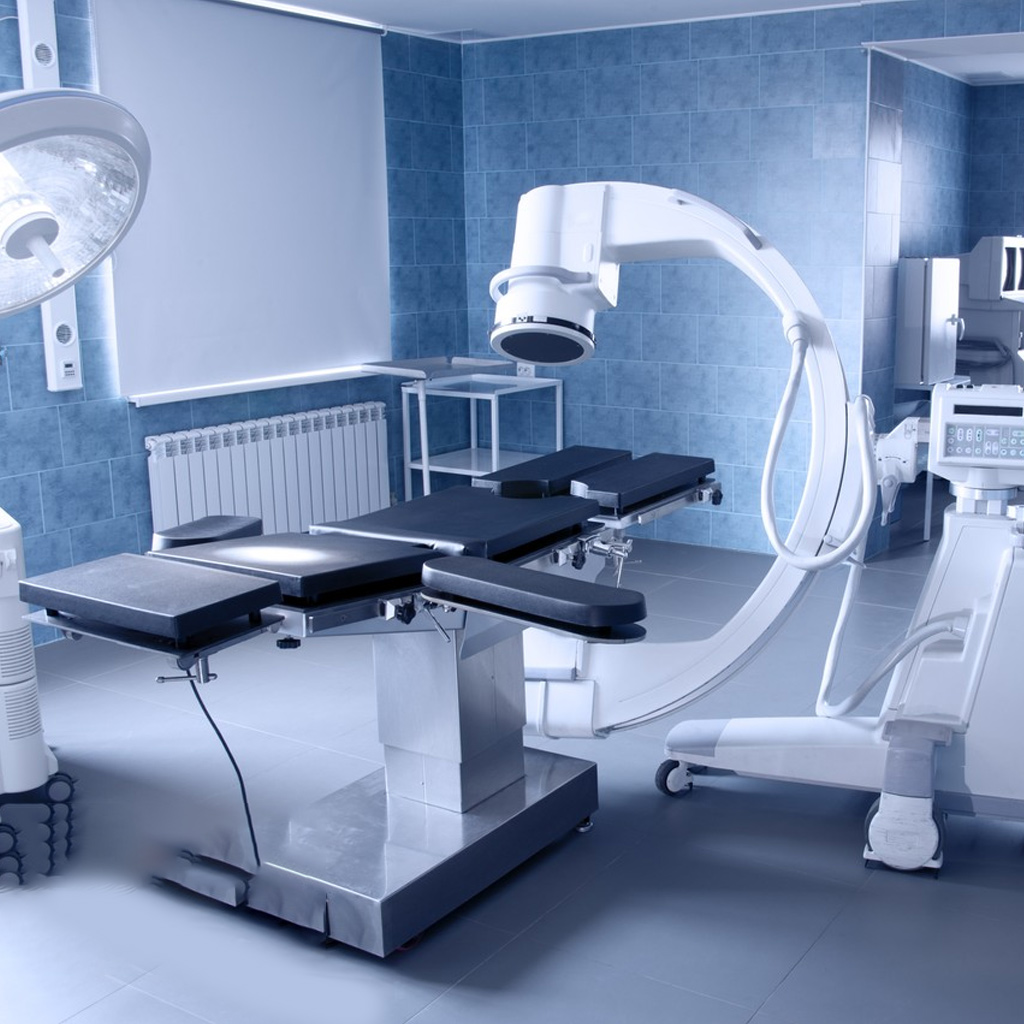

Medical Equipment
Smart Home

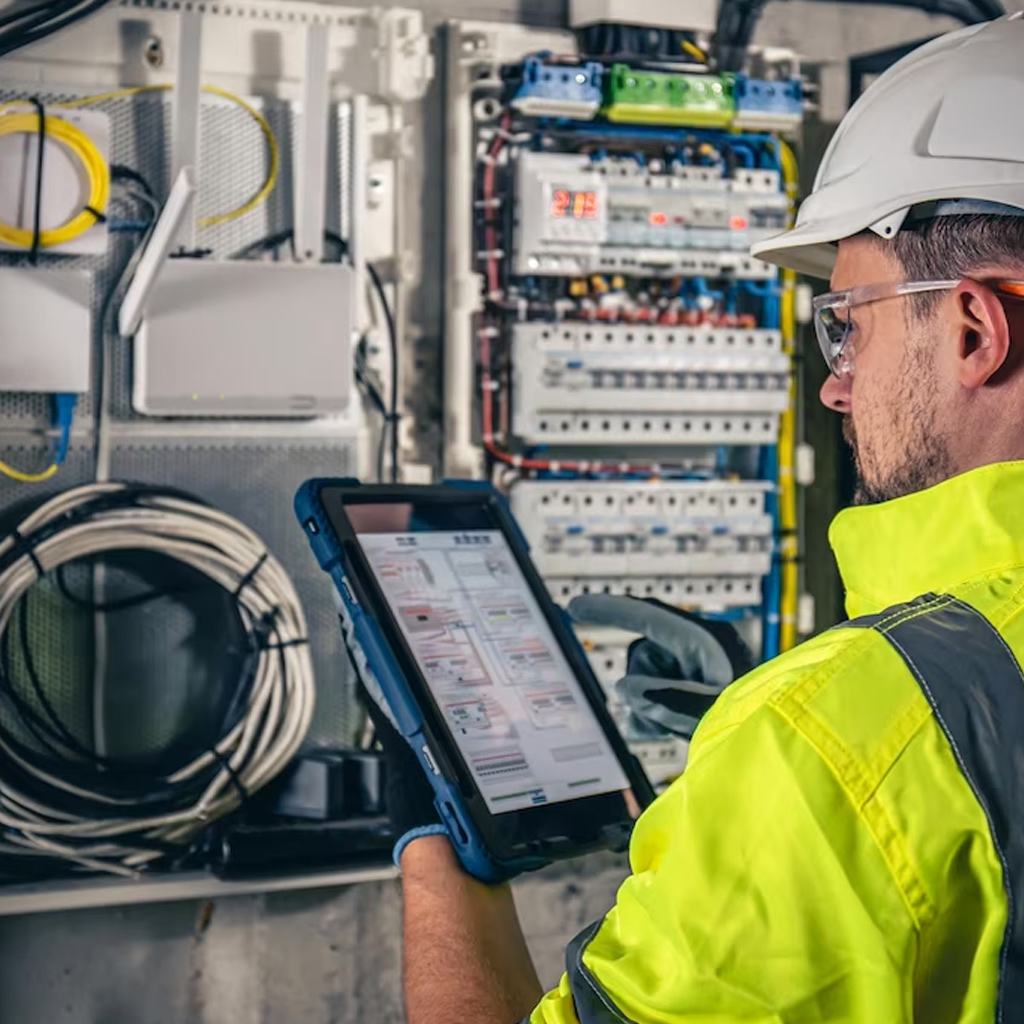

Industrial Control
Led illumination
Send Us A Message
FAQS
Our company can provide rigid PCB, flexible PCB, rigid-flex PCB, multilayer PCB, high-frequency PCB, HDI PCB, aluminum PCB, and so on.
Our company can provide samples, the cost of samples will be determined according to the actual situation.
And there is no MOQ limit. We can accept PCB or PCBA orders ranging from 1 piece to large-scale quantities.
Yes, all of our products strictly comply with IPC-A-610D Class II and III standards.
Our delivery dates will be assessed based on the complexity of the customer’s product.
If the customer has an urgent requirement, our company will spare no effort to accommodate their delivery date.
100% TT in advance and PayPal payment.But if a long-term strategic cooperation is reached, we can discuss specific payment terms.
